(FT5) Leaked images and specs of the new TG-6

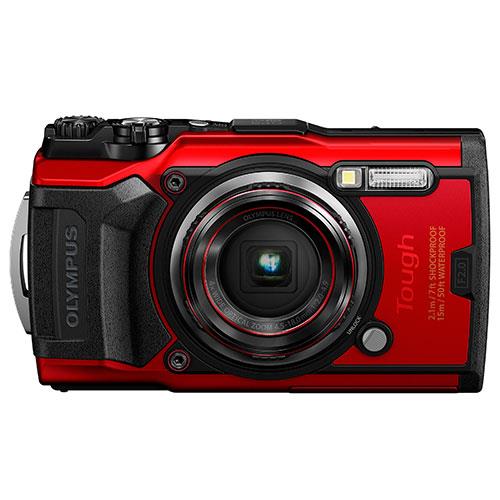

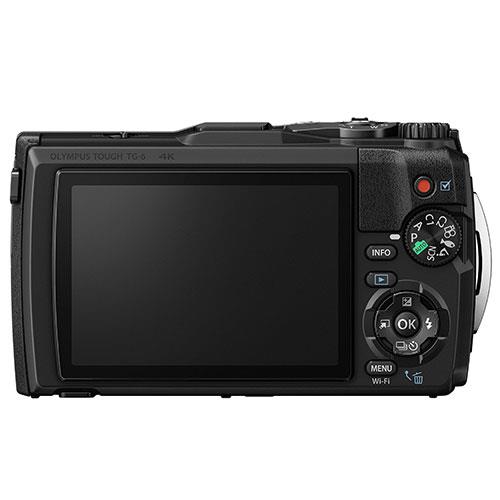

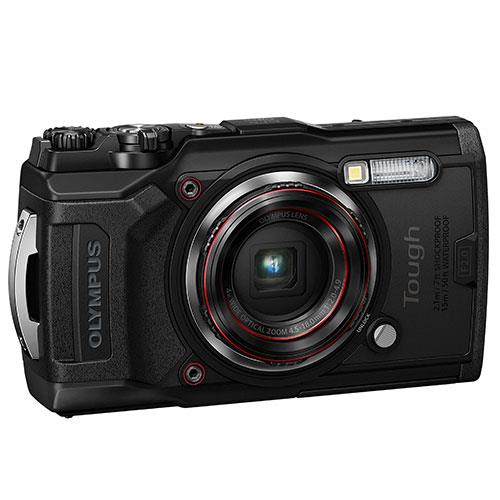

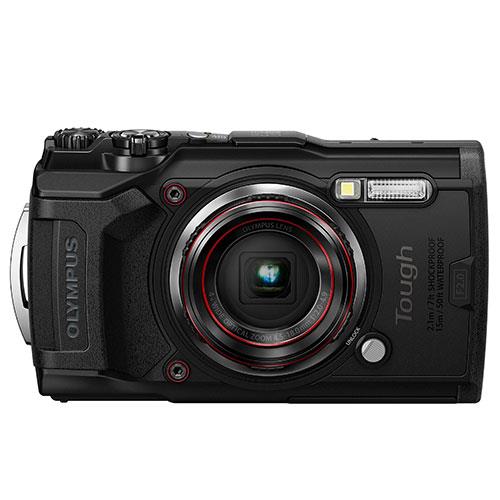

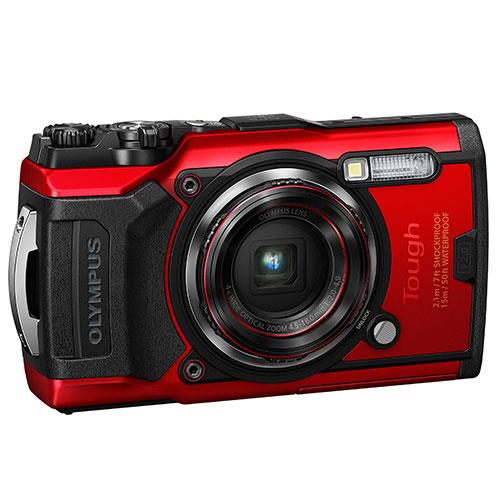

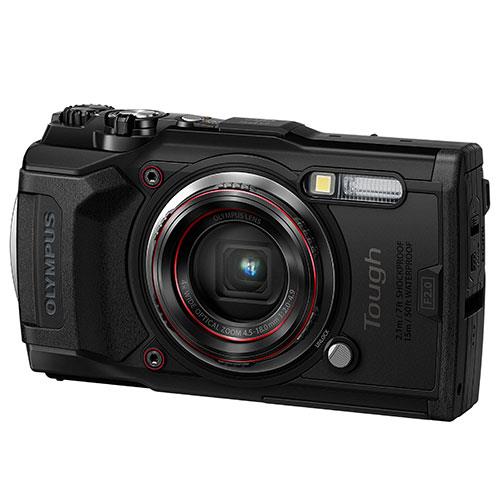

Days ago a source sent me these Olympus TG-6 images and specs and I missed his mail as I was travellin once more accross Europe. Here they are now:
Olympus Stylus Tough TG-6 Specifications
- Sensor Type
- 1/2.3″ BSI CMOS SENSOR
- Effective Pixels
- 12 million
- ISO Sensitivity
- AUTO ISO: 100 – 1600 with customizable upper limit from 100 to 12800 Manual ISO: 100 – 12800 (adjustable)
- Processor
- Olympus TruePic VIII
- Waterproof
- IJIS/IEC protection class 8 (IPX8) – Waterproof to depths of 50 ft / 15 m
- Dustproof
- JIS/IEC protection class 6 (IP6X)
- Freezeproof
- Freezeproof to 14 deg. F / -10 deg. C
- Crushproof
- Crushproof to 220 lbf / 100 kgf
- Shockproof
- Shockproof from 7′ (2.13m)
- Lens Cover Glass
- Anti-fog dual pane
- Focal Length (35mm Equiv.)
- 4.5mm – 18mm (25mm – 100mm)
- Aperture Range
- F/2.0 (wide) – f/4.9 (tele)
- Focus Range
- Throughout entire zoom range : 0.1m – infinity
(Super Macro: less than f=5.4mm, from 0.1m to 0.3m/above 5.4mm, from 0.01m to 0.3m, microscope : 0.01m – 0.3m) - Shutter Speed
- 1/2 – 1/2000 sec. (Night Scene, A mode: up to 4 sec.)
- Optical Zoom
- 4x
- Image Stabilization
- 2.5 EV (Focal length set to 18mm. 35mm Equivalent Focal Length: 100mm)
- Live View Image Stabilization
- Throughout entire zoom range : 0.1m – infinity
(Super Macro: less than f=5.4mm, from 0.1m to 0.3m/above 5.4mm, from 0.01m to 0.3m, microscope : 0.01m – 0.3m) - AF System Type
- CMOS Contrast Detection System
- Focusing Points
- 25
- AF Focus Modes
- Single AF (S-AF) / AF Tracking / Manual Focus (MF)
- AF Illuminator
- Yes
- Face Detection
- Yes
- Manual Focus Assist
- Focus knob rotation activates Live View image magnification and/or focus peaking when in S-AF+MF or MF mode
- Peaking Function
- Yes; Color selection: white, black, red, yellow
- Built-in Flash
- Yes
- Flash Modes
- Auto, Red Eye Reduction, Slow sync. (1st curtain), Red-eye Slow sync. (1st curtain), Fill-in, Manual (1/1 (FULL)~1/64), Flash Off
- Flash Intensity Control Method
- TTL Auto, Manual
- Flash Intensity Control
- Up to +/-2 EV in 1/3 EV steps selectable
- External Wireless Flash Control
- Compatible External Flash
FL-50R, FL-36R, FL-300R, FL-600R, FL-900R, FL-700WR - External Wireless Flash Control Method
- Triggered and controlled by Olympus Wireless RC Flash system
Commander Flash: Built-in flash
Channel 1 channel
Group No. 1 group - Monitor Type
- Color LCD
- Monitor Size
- 3.0″ (Aspect Ratio 3:2)
- Monitor Resolution
- 1,040k-dots
- Touchscreen
- No
- Monitor Brightness Adjustment
- +/-7 levels
- Live View
- Approx. 100% field of view, exposure compensation preview, WB adjustment preview, gradation preview, face detection preview (up to 8 faces), grid line.
Display modes: Standard, Histogram, Highlight & Shadow, Level Gauge, Off. - Removable Memory Type
- SD, SDHC, SDXC, Eye-Fi Card compatible
- Recording Format
- DCF2.0, Exif2.3
- Still Image File Format
- RAW (12-bit lossless compression), JPEG, RAW+JPEG
- Recording Image Size
- [RAW] 4000 x 3000
[JPEG] 4000 x 3000 – 640 x 480 - One Touch Tele-converter
- x2 (P, A, Movie mode), x2/x4 (Microscope mode)
- Exposure / Shooting Modes
- Intelligent Auto (iAUTO), Program Auto (P), Aperture Priority (A), Movie (Standard, 4K, High-speed), Custom1, Custom2, Underwater (Underwater snap, Underwater wide, Underwater macro, Underwater microscope, Underwater HDR), Microscope (Microscope, Focus stacking, Focus bracket, Microscope control), Scene Mode (SCN)
- Sequential Shooting
- [Sequential shooting H]: approx. 20 fps with selectable 10/20 fps
[Sequential shooting L]: approx. 5 fps
[Pro Capture]: approx. 10 fps - Sequential Shooting Recordable Frames
- [Sequential shooting H] RAW: Max. 14 frames, JPEG (LN): Until card is full
[Sequential shooting L] RAW: Max. 40 frames, JPEG (LN): Until card is full - Maximum Recordable Frames
- Prior to Full Shutter Press (Pro Capture Mode): 5 frames (fixed)
- White Balance Mode
- Auto WB, 6 Preset WBs, 3 Underwater WBs, 4 Capture WBs, Custom WB(Kelvin setting)
- White Balance Compensation
- +/- steps along A-B / G-M axis * Except for Custom WB
- Picture Modes
- I-Enhance, Vivid, Natural, Muted, Portrait, Monotone, Custom, e Portrait, Art Filters
- Gradation
- Auto, Normal, High Key, Low Key
[except when using i-Enhance, Underwater, Art Filters, Color Creator] - Scene Modes
- Portrait, e-Portrait, Landscape, Portrait +Landscape, Hand-held Starlight*, Nightscape, Portrait + Nightscape, Children, Sport, Candlelight, Sunset, Fireworks, Beach & Snow, Panorama, Live Composite, Backlight HDR
6 images are automatically captured and combined into a single image composite - Art Filters
- Pop Art (I, II / a.b.c.d.e.f.)
Soft Focus ( – / c.e.)
Pale & Light Color (I, II / a.b.c.d.f.)
Light Tone ( – / d.f.)
Grainy Film (I, II / b.c.d.g.h)
Pin Hole (I, II, III / d.)
Diorama ( I,II / d.)
Cross Process (I, II / b.c.d.f.)
Gentle Sepia ( – / a.b.c.d.f.)
Dramatic Tone (I / b.c.d.e.f.) (II / b.c.d.e.f.g.h)
Key Line (I, II / a.b.c.d.e.)
Watercolor (I, II / a.b.c.d.)
Vintage (I, II, III / a.b.c.d.e.f.i)
Partial Color (I, II, III / a.b.c.d.e.f) - Detail of Art Effect
- A. Soft Focus Effect
b. Pin-Hole Effect
c. White Edge Effect
d. Frame Effect
e. Star Light Effect
f. Blur Effect (Top & bottom, Left & Right)
g. B&W Effect (None, Yellow, Orange, Red, Green)
h. Pict. Tone (None, Sepia, Blue, Purple, Green)
i. Shade Effect (Top & bottom, Left & Right) - Color Ring for Partial Color
- 18 Selectable Colors
- Live Composite
- Update interval time / composite method
.5sec – 4.0 sec / Lighten Mode (Bright area prioritization) - Interval Mode
- Interval Time 1 sec. – 24 hours, max 299 frames. Available when automatically creating Time-lapse video.
- Exposure Compensation
- +/-2 adjustable by 1/3 EV steps
- Focus Bracketing
- Number of images 10 / 20 / 30
Focus step : Wide / Standard / Narrow - Focus Stacking
- Available*
* Angle of view becomes slightly smaller - Video File Format
- MOV (MPEG-4AVC / H.264)
- Video Modes
- [MOV]
3840×2160 (4k) / 30p, 25p (Bit rate: Approx. 102 Mbps)
1920×1080 (FHD) / 30p, 25p / IPB (SF,F,N)
1920×1080 (FHD) / 60p, 50p / IPB (SF,F,N)
1280×720 (HD) / 30p,25p / IPB (SF,F,N)
60p: 59.94fps, 50p: 50.00fps, 30p: 29.97fps, 25p: 25.00fps
FHD IPB (SuperFine / 52Mbps, Fine / 30Mbps, Normal / 18Mbps)
HD IPB (SuperFine / 52Mbps, Fine / 30Mbps, Normal / 18Mbps) - Maximum Video Recording Time
- [MOV] Approx. 29 min
- Art Filter for Movie
- Yes (Frame rates may drop when certain Art Filters are used)
- Time Lapse Movie
- [MOV]
3840×2160 (4K) / 5fps
1920×1080 (FHD) / 5fps, 10fps, 15fps
1280×720 (HD) / 5fps, 10fps, 15fps, 30fps - High Speed Movie
- 1920×1080 (FHD) / 120fps, recording time 20 sec.
1280×720 (HD) / 240fps 20 sec., recording time 20 sec.
640×360 (SD) / 480fps 20 sec., recording time 20 sec. - Image Stabilization for Video
- Digital stabilization (angle of view becomes slightly smaller)
- Audio Recording
- Wave Format (Stereo linear PCM/16-bit, Sampling frequency 48kHz)
- Microphone
- Built-in stereo microphone
- Speaker
- Built-in mono speaker
- Live View Output via HDMI
- Monitor Mode (outputs video and info display to a connected monitor)
- Wi-Fi
- Built-in (IEEE 802.11 b/g/n)
- Action Track Sensors
- GPS (GLONASS, QZSS), compass, manometer, temperature sensor, accelerometer
- PC Connectivity
- USB 2.0 (Micro-B)
- HDMI
- Micro HDMI (Type D)
- PictBridge Easy Print
- Print reservation (DPOF), Direct print (PictBridge compatible)
- Battery Type
- LI-92B Li-ion battery
- AC Adapter
- F-5AC
- Sleep Mode
- Available (1 / 3 / 5 min. off)
- Battery Life
- Approx. 340 images
Approx. 50 minute video (under standard JEITA testing)
Approx. 110 minute video (when zoom and other operational functions are not used) - Self Timer
- Operation time: 12 sec., 2 sec., custom (wait time: 1-30sec., number of shots: 1-10, shot interval: 0.5 / 1 / 2 / 3sec.)
- Languages
- 34 selectable languages: English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Rumanian, Indonesian, Malay, Thai
- Dimensions (WxHxD)
- 113 x 66 x 31.9mm (4.45 x 2.60 x 1.26″) (based on CIPA standards, excludes protrusions)
- Weight
- Approx. 253g (8.92 oz) (with battery and memory card, based on CIPA standards)
